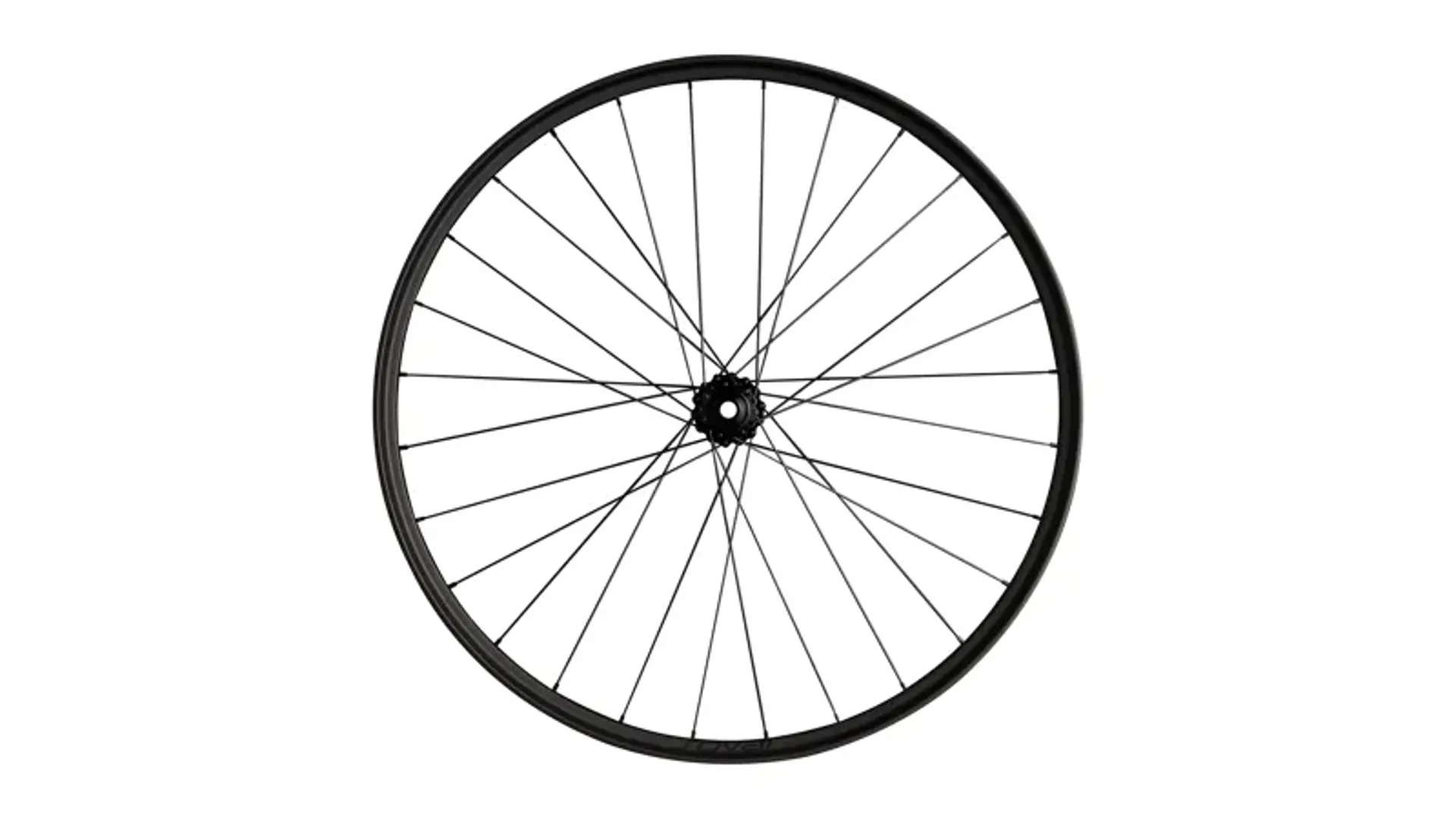

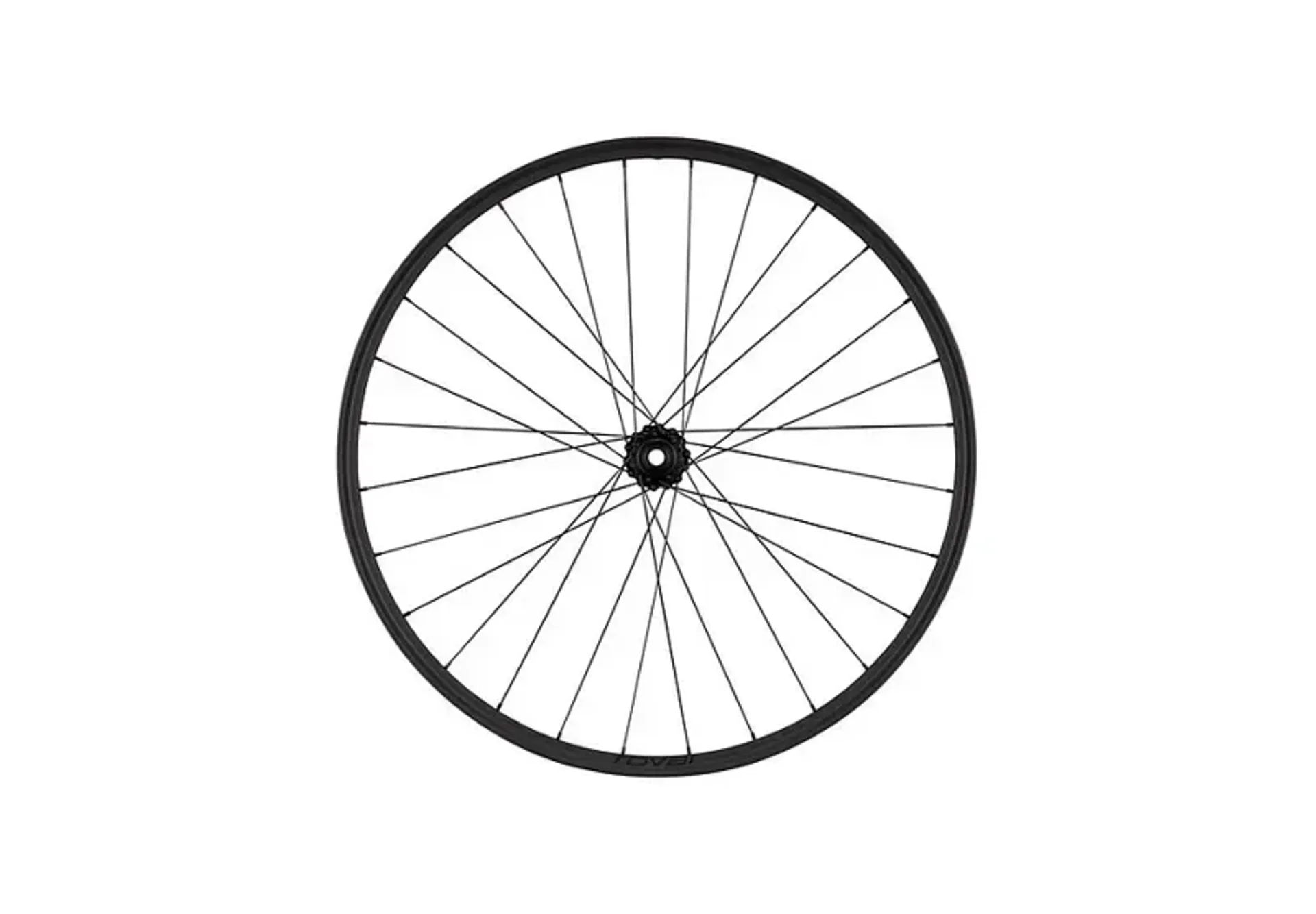

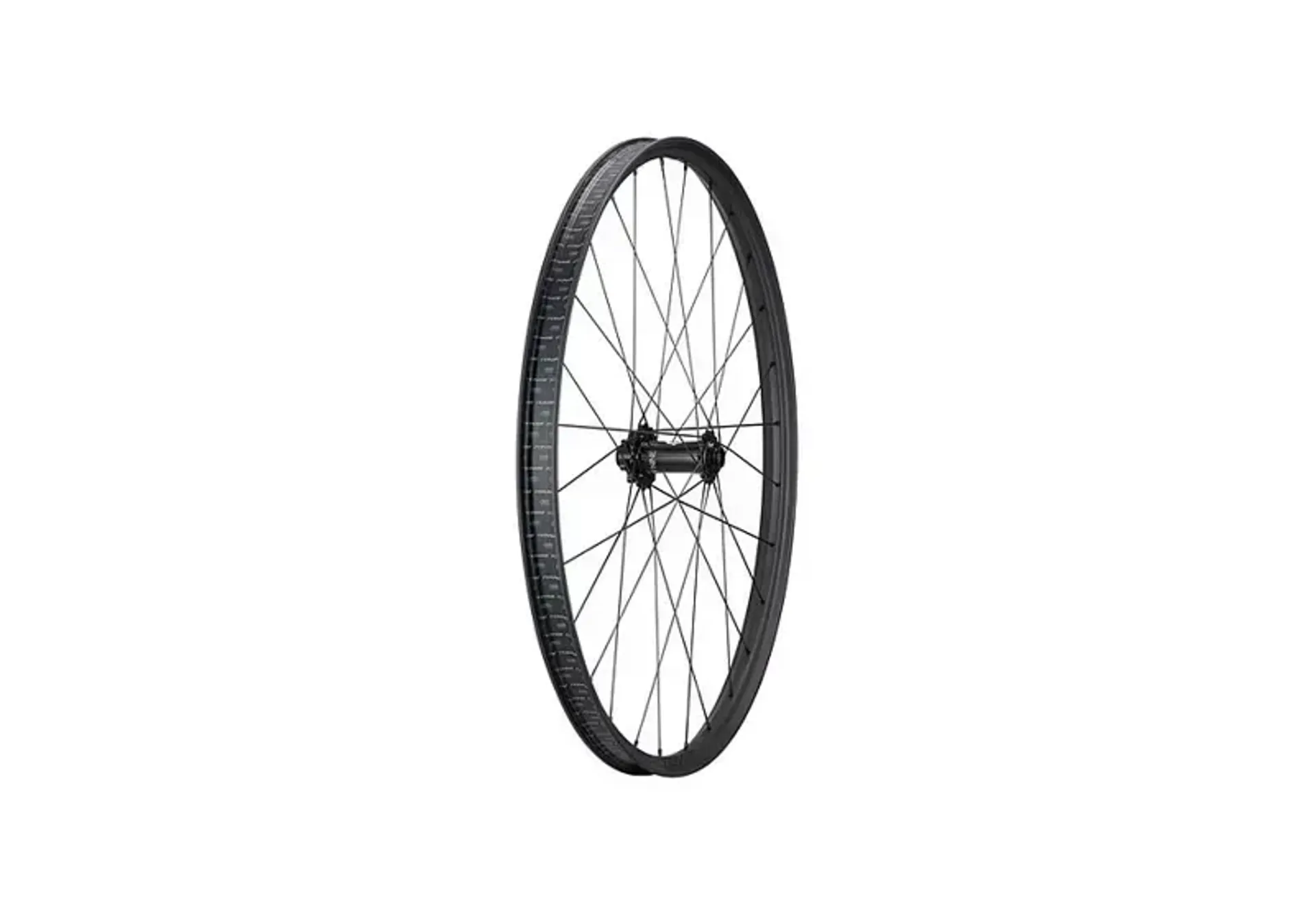

Front rim
Traverse SL II Asymmetric Carbon 29" (WC036-1)
-
Front rim dimensions
Depth: 20mm, external width: 40mm, internal width: 30mm, bead hook width: 5mm
-

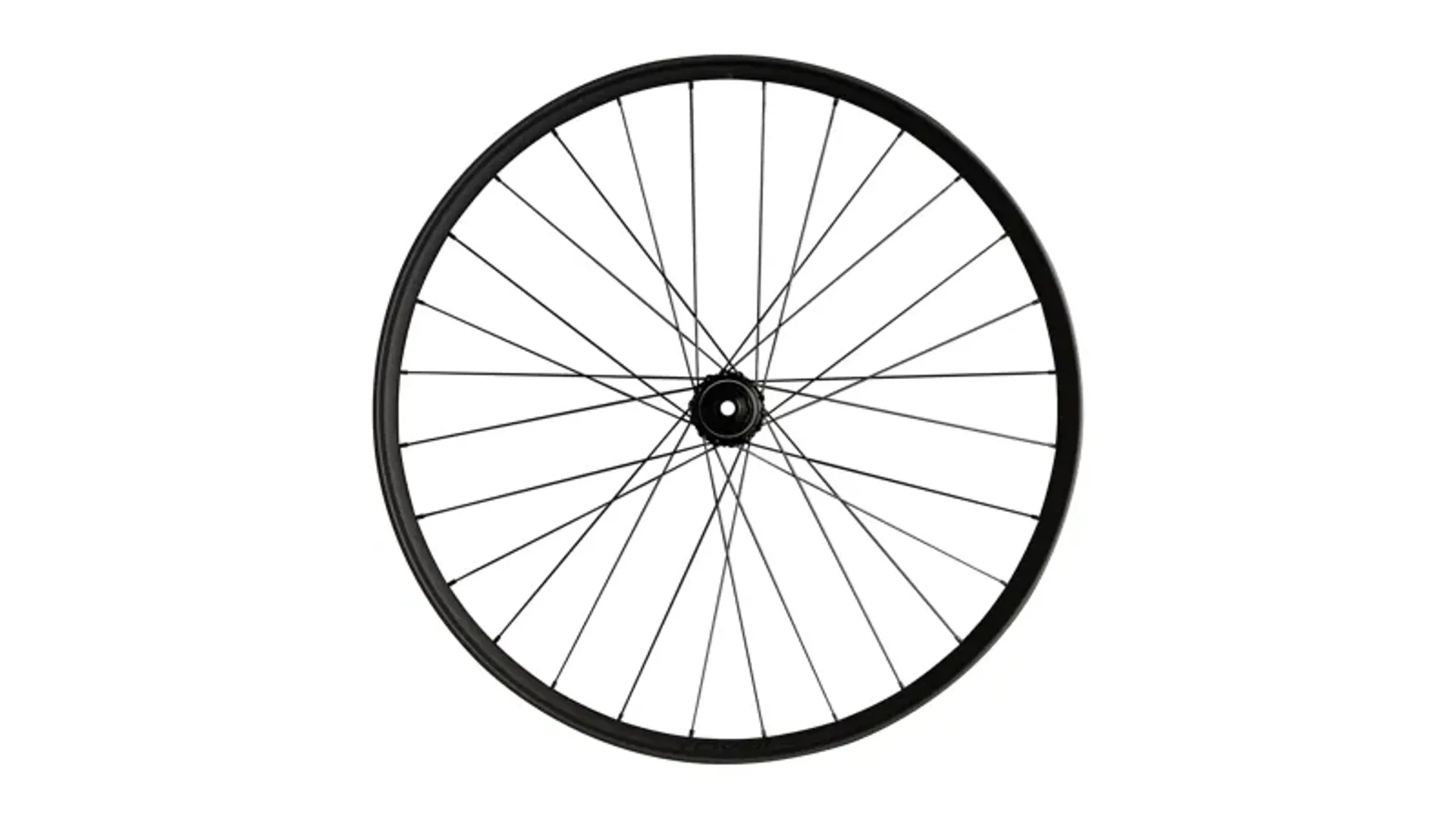

Rear rim
Traverse SL II Asymmetric Carbon 29" (WC036-2)
-
Rear rim dimensions
Depth: 20mm, external width: 40mm, internal width: 30mm, bead hook width: 5mm
-

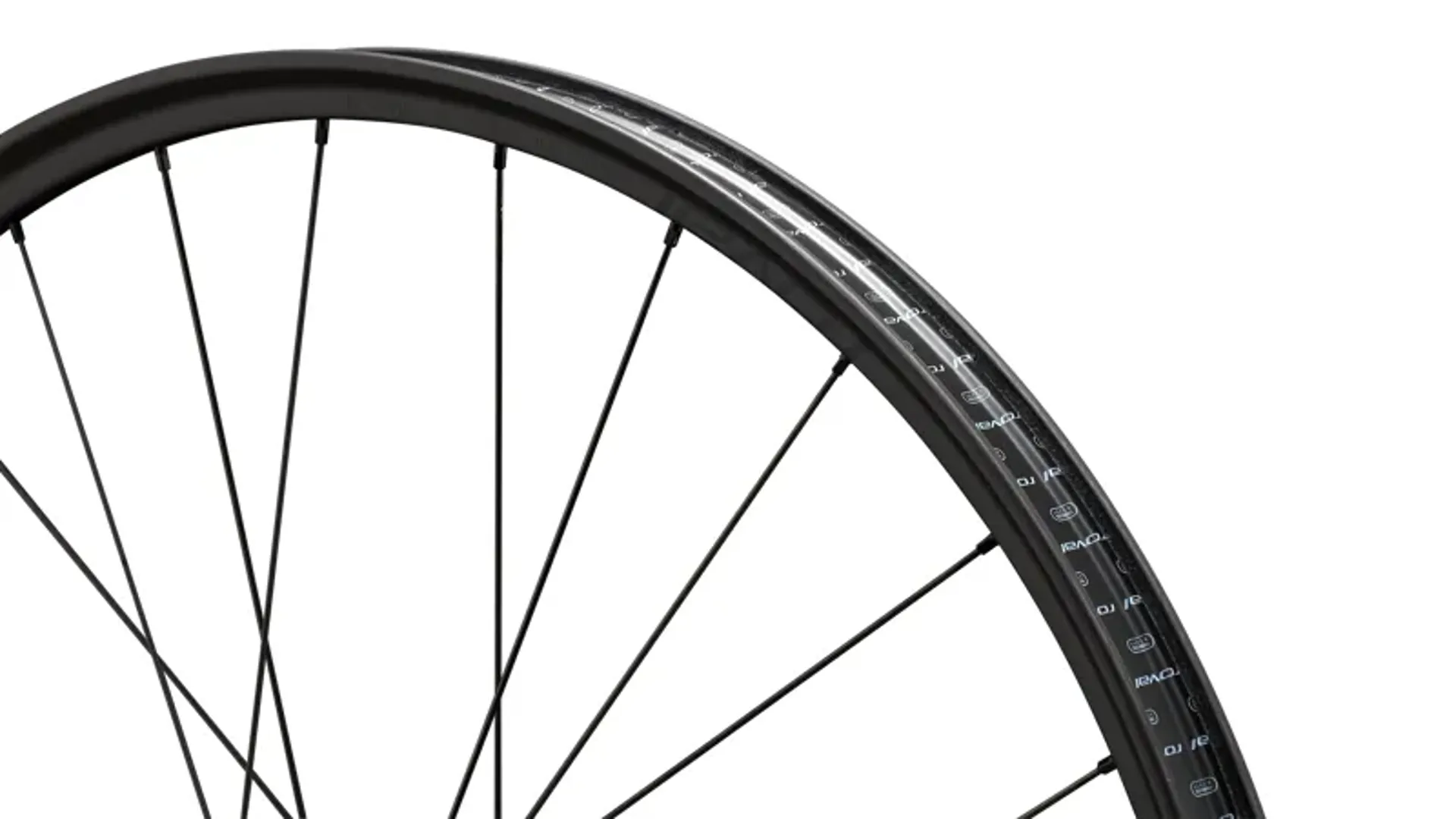

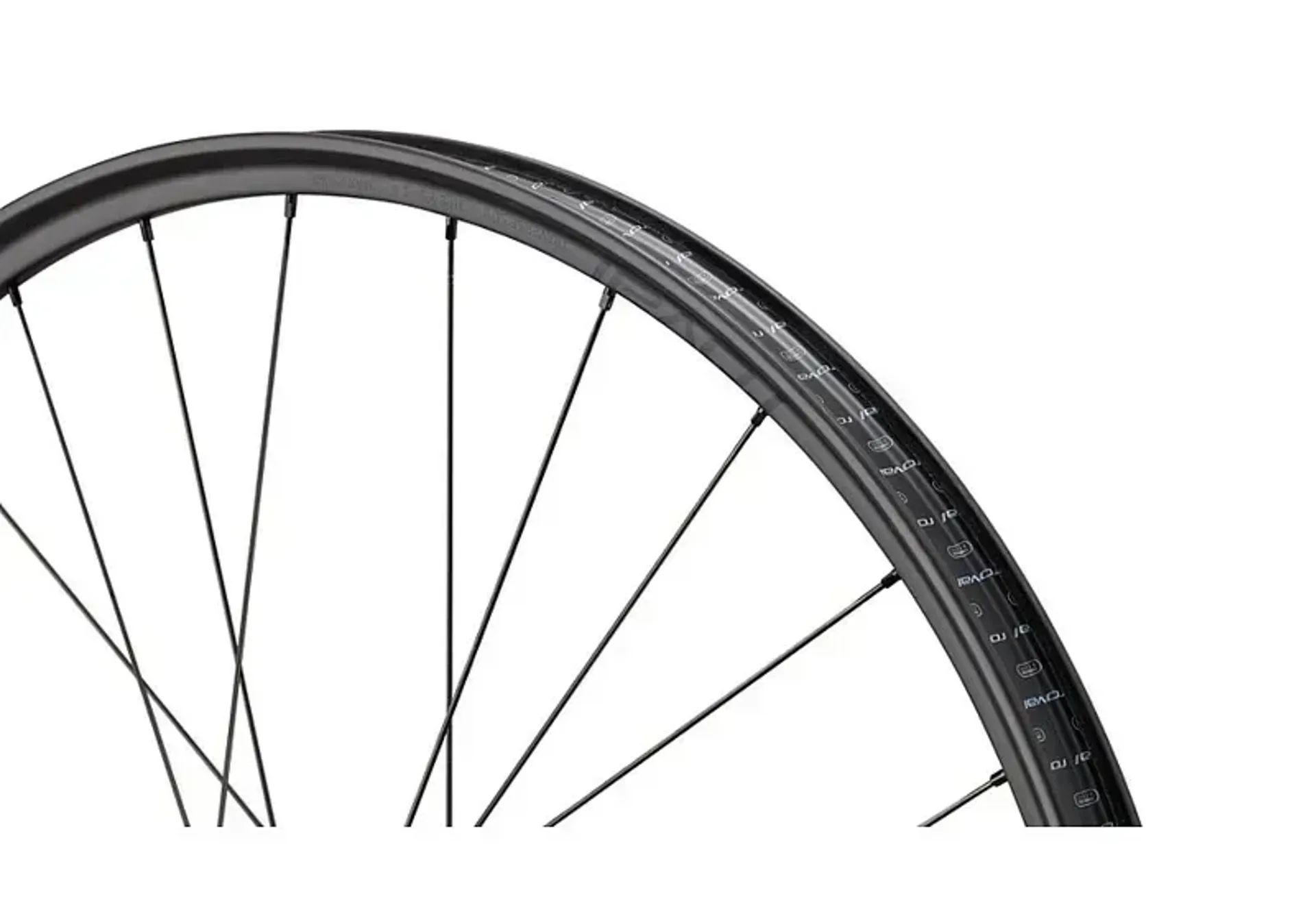

Rim construction
Carbon clincher hookless
-
Wheel size / ETRTO
29"/622 mm
-
Hole count
Front: 28H, rear: 28H
-
Tubeless compatibility
Yes
-
Insert compatibility
Yes
-
Brake compatibility
Disc (6-Bolt)
-
Valve stem length
Roval thread bead 37mm, standard Presta greater than 37mm
-

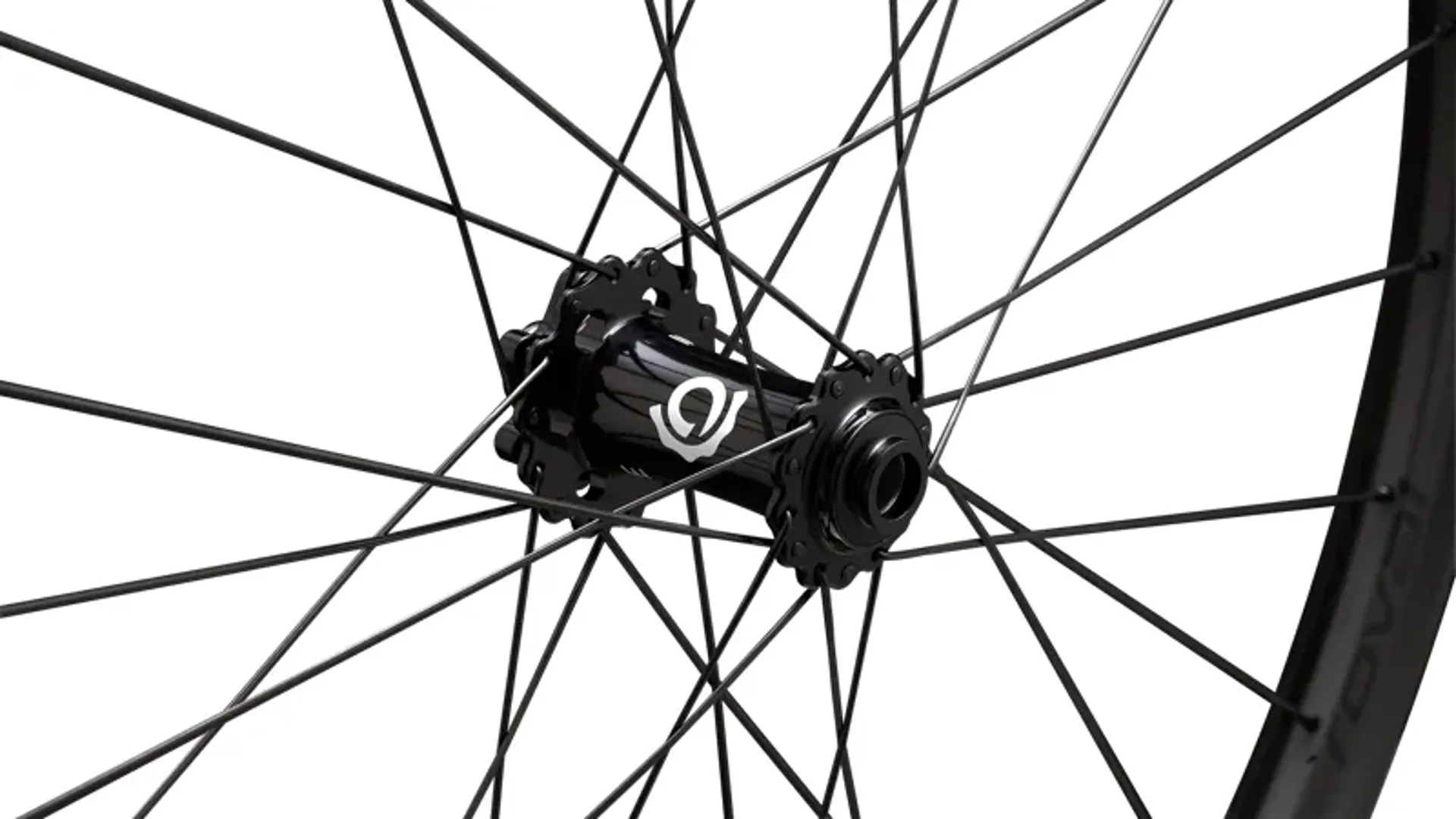

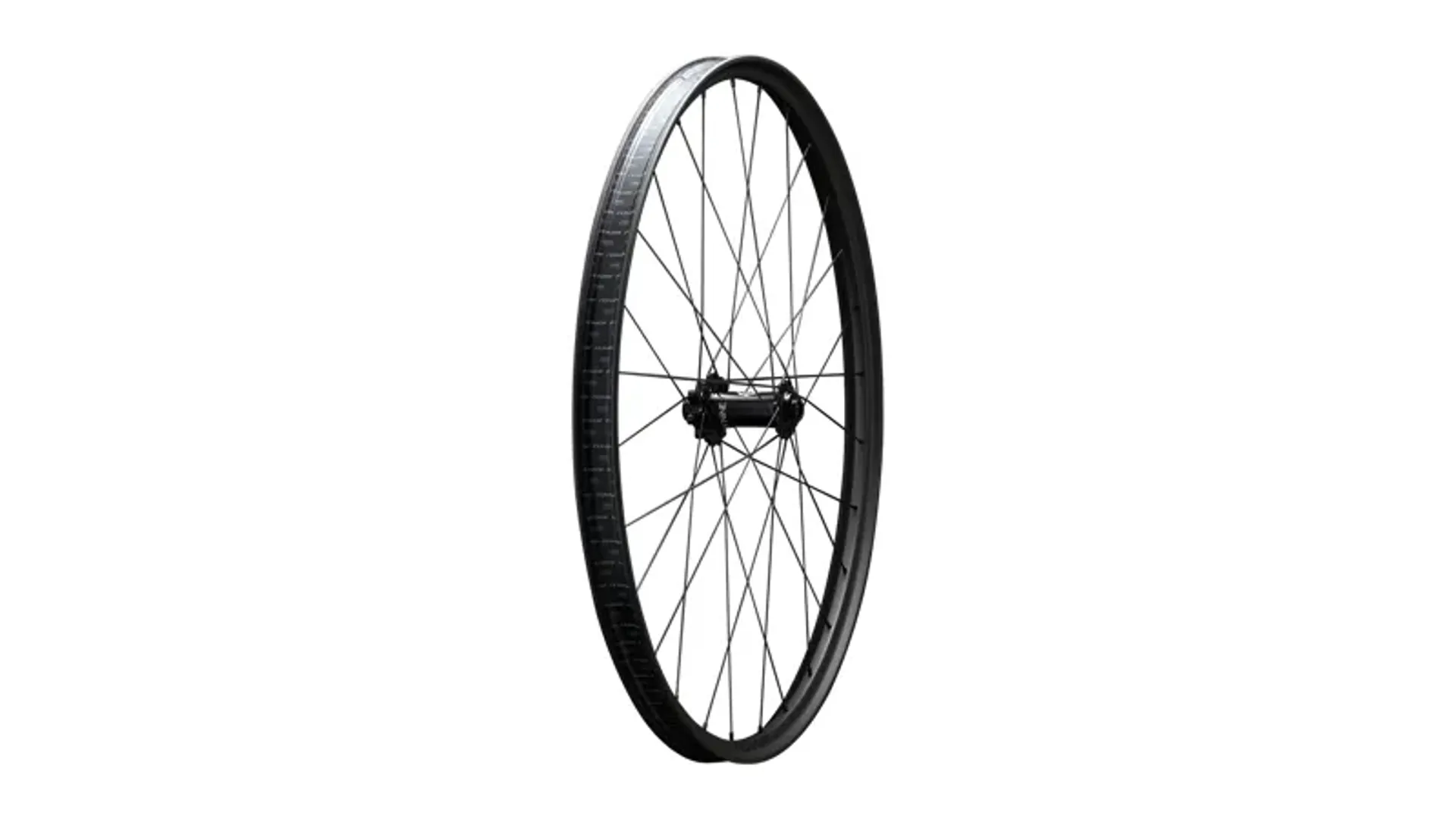

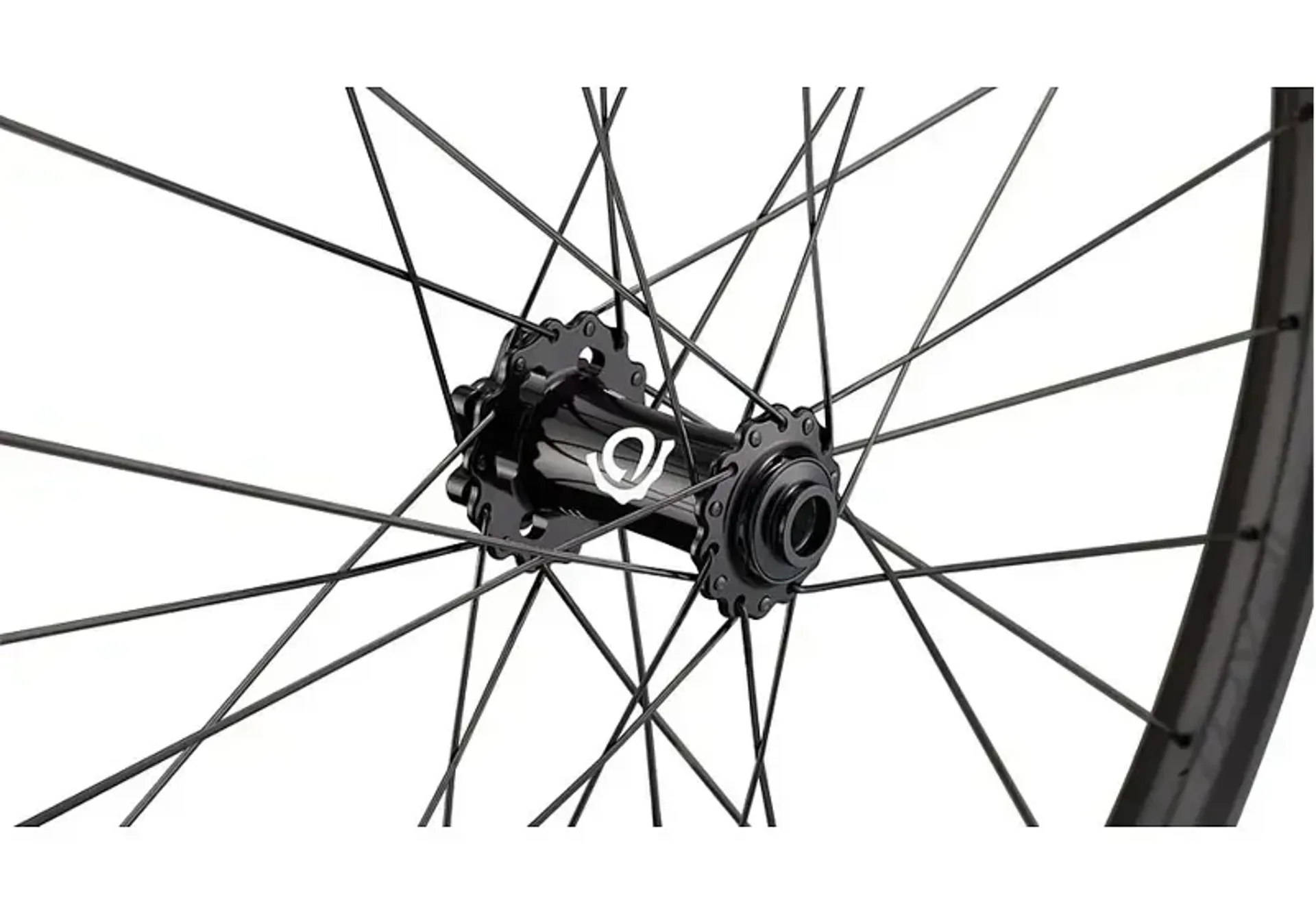

Front hub
Industry Nine Hydra 2 J-Bend, 6-Bolt, 15x110mm, 19mm OD end caps installed
-

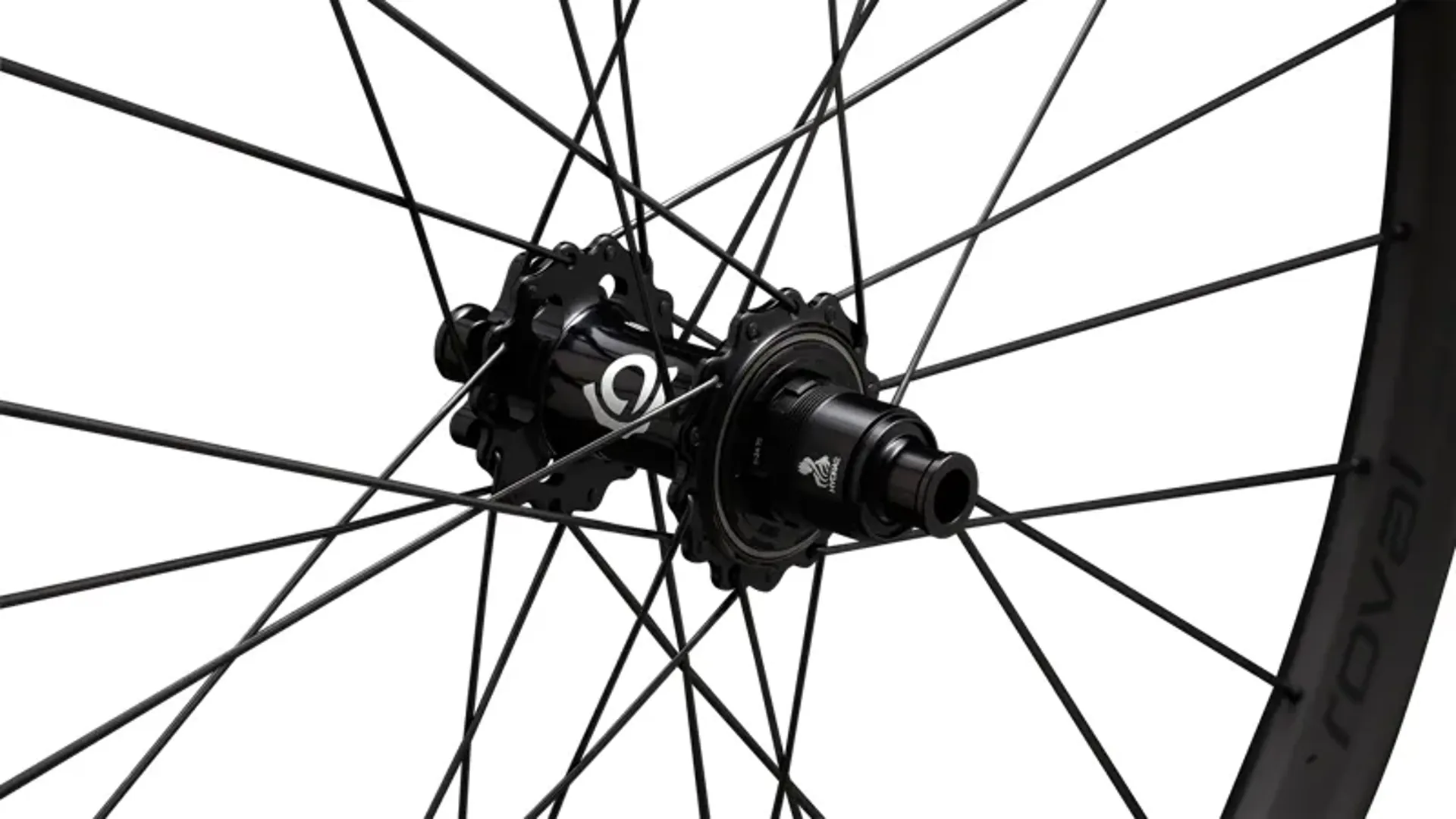

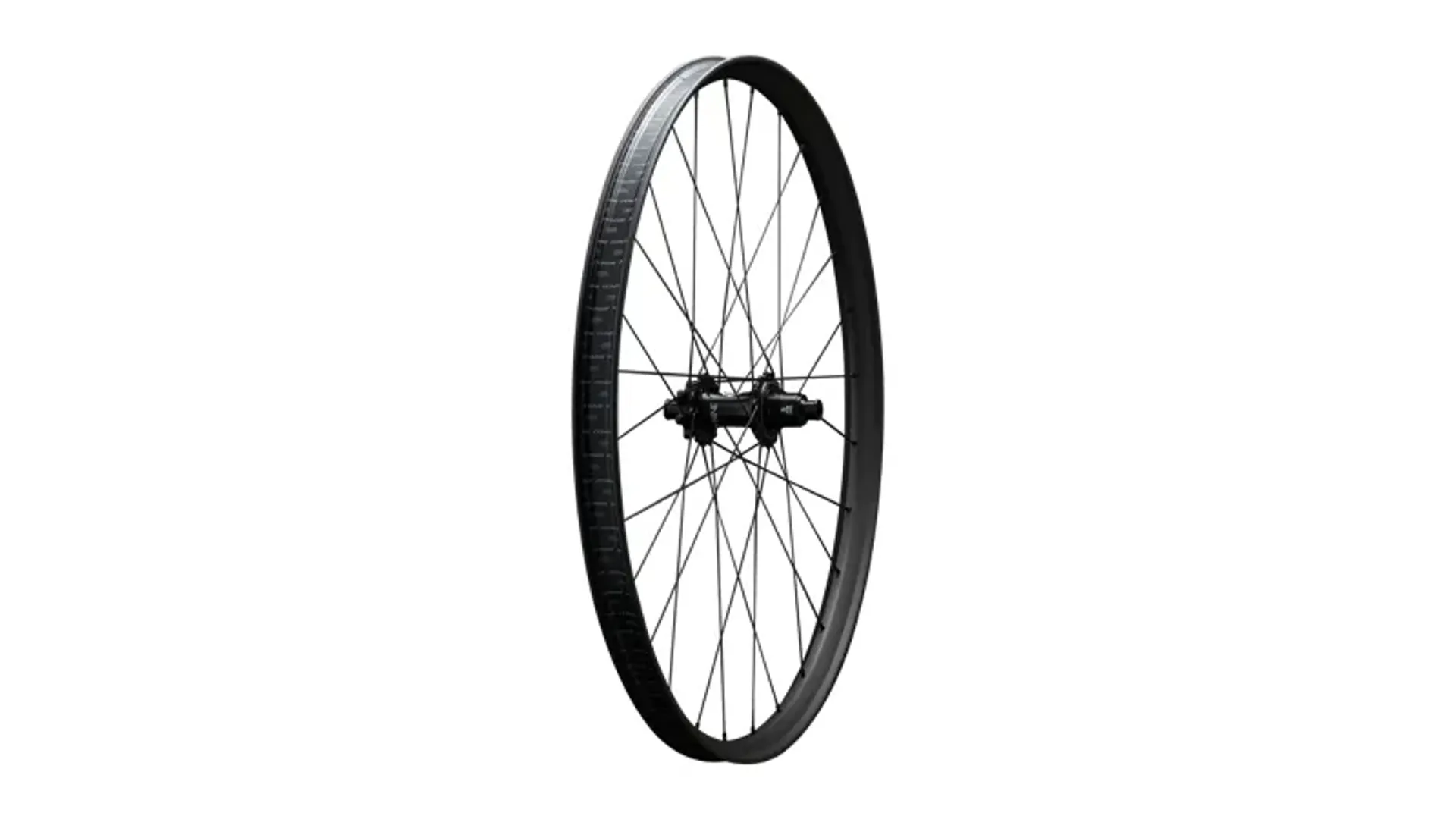

Rear hub
Industry Nine Hydra 2 J-Bend, 6-Bolt, 12x148mm
-
Front hub bearing
Stainless steel - DS: 61903 (17 x 30 x 7 mm), NDS: 61903 (17 x 30 x 7 mm)
-
Rear hub bearing
Stainless steel - DS: 61903 (17 x 30 x 7 mm), NDS: 61903 (17 x 30 x 7 mm)
-
Rear freehub body
Industry Nine Hydra 2: Sram XD
-
Front spokes
DT Swiss Revolite
-
Rear spokes
DT Swiss Revolite
-
Front lacing pattern
Two-cross / two-cross (1:1) tucked
-
Rear lacing pattern
Two-cross / two-cross (1:1) tucked
-
Nipples
DT Swiss Pro Lock, hexagonal, alloy
-
Approved tire widths
2.3” - 2.6”
-
Max pressure
Tubeless 40 psi, tubes 40 psi
-
Tire type
Tubeless, tube type clincher
-
Tubeless tape width
32 mm
-
Design tire
Butcher Grid Trail T9 TLR Trail Tire 29 x 2.4
-
Front weight
795g (with tape and valves)
-
Rear weight
962g (with tape and valves)
-
Wheelset weight
1,757g (with tape and valves)
-
Extras
4 extra spokes and nipples, 31mm OD end caps
-
E-bike approved
Yes
-
Weight limit
275 lbs. / 125 kg.
-
Assembly method
Hand built
